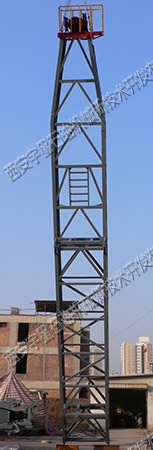

JJ1880采油、采气井架
我公司生产的JJ1880采油、采气井架是依据API Spec4F和GB/T25428-2015《钻井和采油设备 钻井和修井井架、底座》两个标准要求所制造的,主要由天车总成、井架上体、井架下体、井架支脚座、紧绳器、井架基础(选购)及各个连接部件等部分组成。
井架上、下体工作时可通过绞耳座、连接销、连接板、连接螺栓方便地连接成一个整体,且无需找正。运输时拆去连接销、连接板、连接螺栓可将井架上、下体折叠成上图三所示的运输状态,以方便运输。另外,因井架上、下体主要是通过绞耳座、连接销连接起来的,工作时的载荷在井架上、下体连接处主要由连接销承担,可有效地避免把井架连接螺栓孔磨大变形的现象发生。井架上体设置有液压钳吊绳滑轮,井架下体设置有手动绞车可方便、规范的将液压大钳悬挂在井架上。且高、低可调。另外,该井架的安装基础尺寸与现有的29米井架安装基础完全一样,使用时可利用现有的29米井架基础,节约成本,便于管理。
天车总成主要由滑轮组、天车平台(底座)、护栏等组成,滑轮组为U型排列,工作时可使游车大钩平稳起下。设置有天车平台(底座)、护栏,可保证工作人员安全方便地穿大绳。
主要技术参数:
1、井架有效高度:18米
2、额定载荷:800KN
3、天车滑轮数:6个
4、滑轮直径:585mm
5、绷绳数:10根

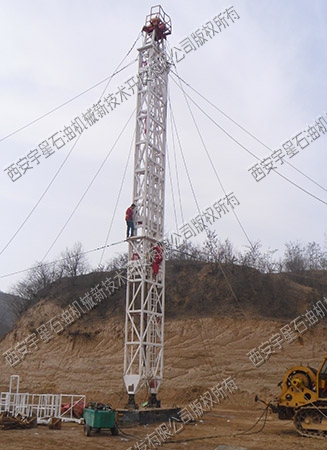

JJ2180采油、采气井架
我公司生产的JJ2180采油、采气井架是依据API Spec4F和GB/T25428-2015《钻井和采油设备 钻井和修井井架、底座》两个标准要求所制造的,主要由天车总成、井架上体、井架下体、井架支脚座、紧绳器、井架基础(选购)及各个连接部件等部分组成。
井架上、下体工作时可通过绞耳座,连接销、连接板、联接螺栓方便地连接成一个整体,且无需找正。运输时拆去连接销、连接板、联接螺栓可将井架上、下体折叠成上图所示的运输状态,以方便运输。另外,因井架上、下体主要是通过绞耳座,连接销连接起来的,工作时的载荷在井架上、下体连接处主要由连接销承担,可有效地避免把井架连接螺栓孔磨大变形的现象发生。
天车总成主要由滑轮组、天车平台(底座)、护栏等组成,滑轮组为U型排列,工作时可使游车大钩平稳起下。因设置有天车平台(底座)、护栏,可保证工作人员安全方便地穿大绳。另外还设置有防坠器挂钩,可保证工作人员安全方便地上下井架。
主要技术参数:
1、井架有效高度:21米
2、额定载荷:800KN
3、天车滑轮数:6个
4、滑轮直径:605mm
5、绷绳数:10根
6、运输状态外形尺寸(长×宽×高):10.5米×2.2米×2.3米

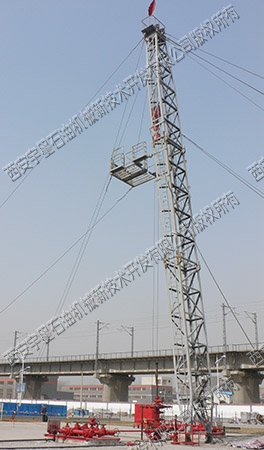

JJ2980采油、采气井架(常规折叠式)
我公司生产的JJ2980采油、采气井架是依据API Spec4F和GB/T25428-2015《钻井和采油设备 钻井和修井井架、底座》两个标准要求所制造的,主要由天车总成、井架上体、井架中体、井架下体、二层工作平台、井架支脚座、紧绳器、手动绞车(用于起吊液压钳)、井架基础(选购)以及各个连接部件等部分组成。
JJ2980常规采油采气井架为上、中、下段折叠井架,折叠时,井架中体可与下体折叠,也可以上体与井架中体折叠。使用时,必须摆成水平位置,先穿上连接销轴,然后将连接钢板固定于上体(或下体),再对中、下体(或下体),对接好的井架端部间隙不大于2㎜。井架上体设置有液压钳吊绳滑轮,井架下体设置有手动绞车可方便、规范将液压大钳悬挂在井架上,且高、低可调。
天车总成主要由滑轮组、天车平台(底座)、护栏等组成,滑轮组为U型排列,工作时可使游车大钩平稳起下。因设置有天车平台(底座)、护栏,可保证工作人员安全方便地穿大绳。另外还设置有防坠器挂钩,可保证工作人员安全方便地上下井架。
二层台总成在设计时,增加了左右逃身装置,可方便在井架的左右两侧安装逃身绳。对所有踏板均采用高强度合叶进行了加固连接,同时也对所有护栏进行了加固,大大提高了二层台的安全性。为了方便调整梳梁的宽度,对其固定螺栓进行了改制,在其螺栓顶部增加了黄油嘴。
主要技术参数:
1、井架有效高度:29米
2、额定载荷:800KN
3、天车滑轮数:6个
4、滑轮直径:585mm
5、绷绳数:10根
6、二层台高度:16.5米;18米;19.5米
7、手动绞车WD52:500Kg

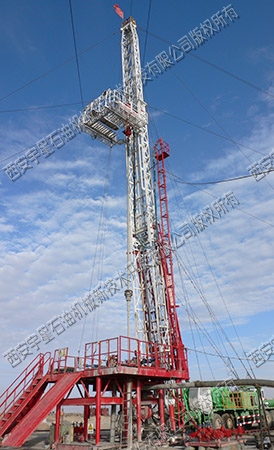

JJ2980三节伸缩式井架
JJ2980D井架是三节液压伸缩式新型井架,能满足4000m以内油、水、气井的小修作业和3200m以内油井的抽汲作业。该井架结构布局合理,性能优越,是油田修井和抽汲的作业的一种新型井架。井架采用三节液压伸缩式前开口∏型结构,主要由天车总成、井架上体、井架中体、井架下体、伸缩液缸、死绳固定器、井架基础和绞支座组成。井架中体和井架上体采用长液缸伸缩,安全可靠。
液压系统主要由液压马达、液压泵、换向阀、伸缩液缸等组成,液压马达、液压泵、换向阀安装在液压油箱上。液压马达通过原通井机液压系统中的液压油驱动,同时带动液压泵从油箱中吸取液压油,并产生高压油,供给换向阀,再通过操作换向阀分别给井架中体伸缩液缸和井架上体伸缩液缸供油或回油,来完成井架的伸缩。系统最大工作压力为14MPa,出厂前己调好,在使用中一般不需调节。滤油器应定期检查清洗,以保证液路系统工作的安全可靠。
主要技术参数:
1、结构型式:前开口Π型三节液压伸缩式井架
2、井架高度:29米
3、工作倾角:5°30'
4、天车滑轮数:5个
5、井架基础中心至井口中心距离:2米
6、液压马达型号:CM-FM40-FL
7、液压泵型号:CB-FC40-FL
8、换向阀型号:34SM-H10B-T
9、液压系统最高压力:16MPa

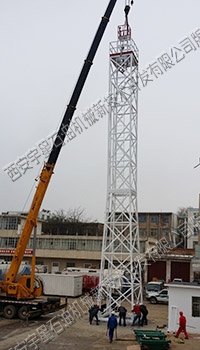

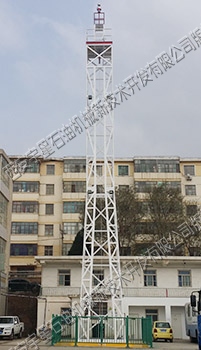

CJJ22测井井架
我公司设计、生产的超深井测井标准井井架成套设备主要由超深井测井标准井井架基础预埋件总成,超深井测井标准井井架本体总成,天、地车滑轮总成,卷扬机,提升钢丝绳,操作平台总成,蜗杆空气压缩机,照明系统,避雷针系统,工作房,设备房,柴油发电机组以及其他附件等部分组成。超深井测井标准井井架主体部分主要由井架基础、井架下体、井架上体、塔架、井架梯子、工作人员上井架防坠装置、避雷针、避雷针导线、井架照明系统、天、地滑轮总成、地滑轮基础等零部件组成。
井架整体为四腿支撑,腿与腿之间有横梁,井架整体分为井架下体、井架上体、塔架三个部件;井架上体的上部横梁设置有一个导向受力天滑轮,井架梯子位于井架一侧,且在井架塔架顶部下方配置一个30米的防坠装置,可保证工作上井架时的安全。井架天车平台设计有护栏、踏板,避雷针固定座处也设计有踏板、护栏。导向受力天滑轮采用50T天滑轮,设置有防钢丝绳跳槽挡块,固定安装在井架天车平台横梁上,能够左右移动200mm、前后移动100mm,可保证测井天滑轮一侧电缆垂直下放正对标准井中心。导向地滑轮采用20T地滑轮。导向地滑轮前部设置有承载钢丝绳锚定装置,承载钢丝绳锚定装置的承载力为25T。

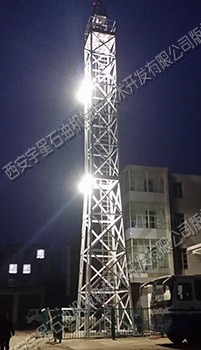

井架设置照明灯,在测井车方向安装上下四个照明灯,井架内侧安装四个照明灯,二个照向天滑轮,二个照向标准井口,方便观察天滑轮和井口作业。井架顶端设置有红色信号的航空示高灯,灯的控制均设置在设备房电控柜上。井架上体设置有一个塔架,高出井架上平台4米,塔架顶端安装有避雷设施,顶部避雷器独立接地,满足国家防雷、避雷相关要求。
|
|
|

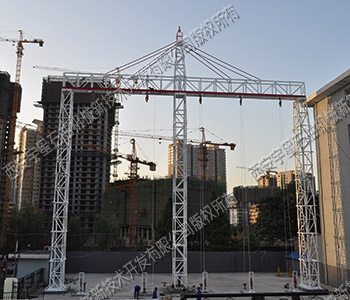

测井龙门架
|
|
